| -Specification |
| Name (Provisional) |

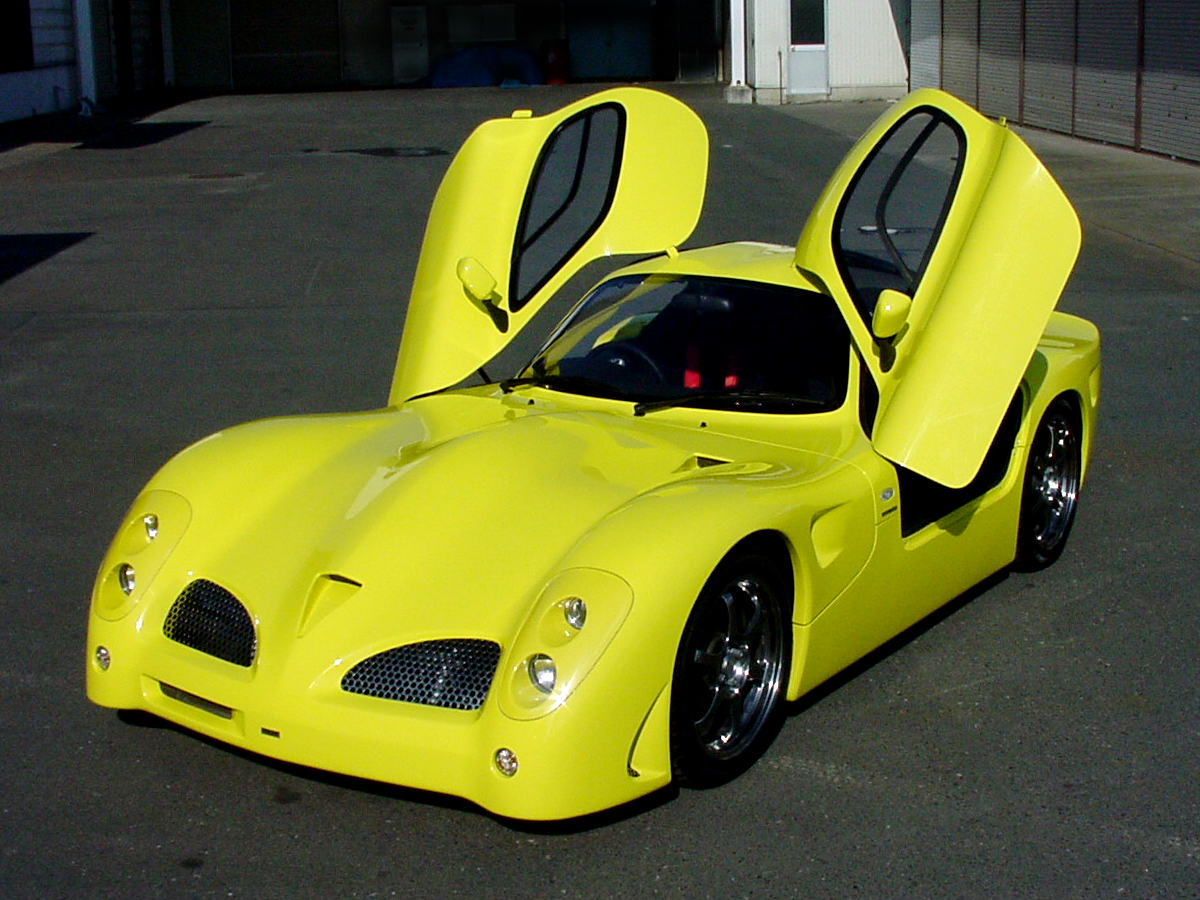

Hayabusa Prototype |
| Overall length |
3,790mm |
| Overall width |
1,760mm |
| Overall height |
1,100mm |
| Wheelbase |
2,200mm |
| Tread front |
1,500mm |
| Tread rear |
1,518mm |
| Ground clearance |
100mm |
| Weight |
550kg |
| Weight distribution |
50:50 |
| Engine type |
Type W701 Liquid cooled In-line
4 DOHC 16 valves |
| Bore x stroke |
81.0mm x 63.0mm |
| Capacity |
1,299cc |
| Compression ratio |
11.0:111.0:1 |
| Fuel system |
EPI (Electronic Petrol Injection) |
| Maximum horsepower |
129KW(175PS)/9,800rpm |
| Maximum torque |
138N.m(14.1kg-m)/7,000rpm |
| Drivetrain |
Transmission: 6 speed sequential |

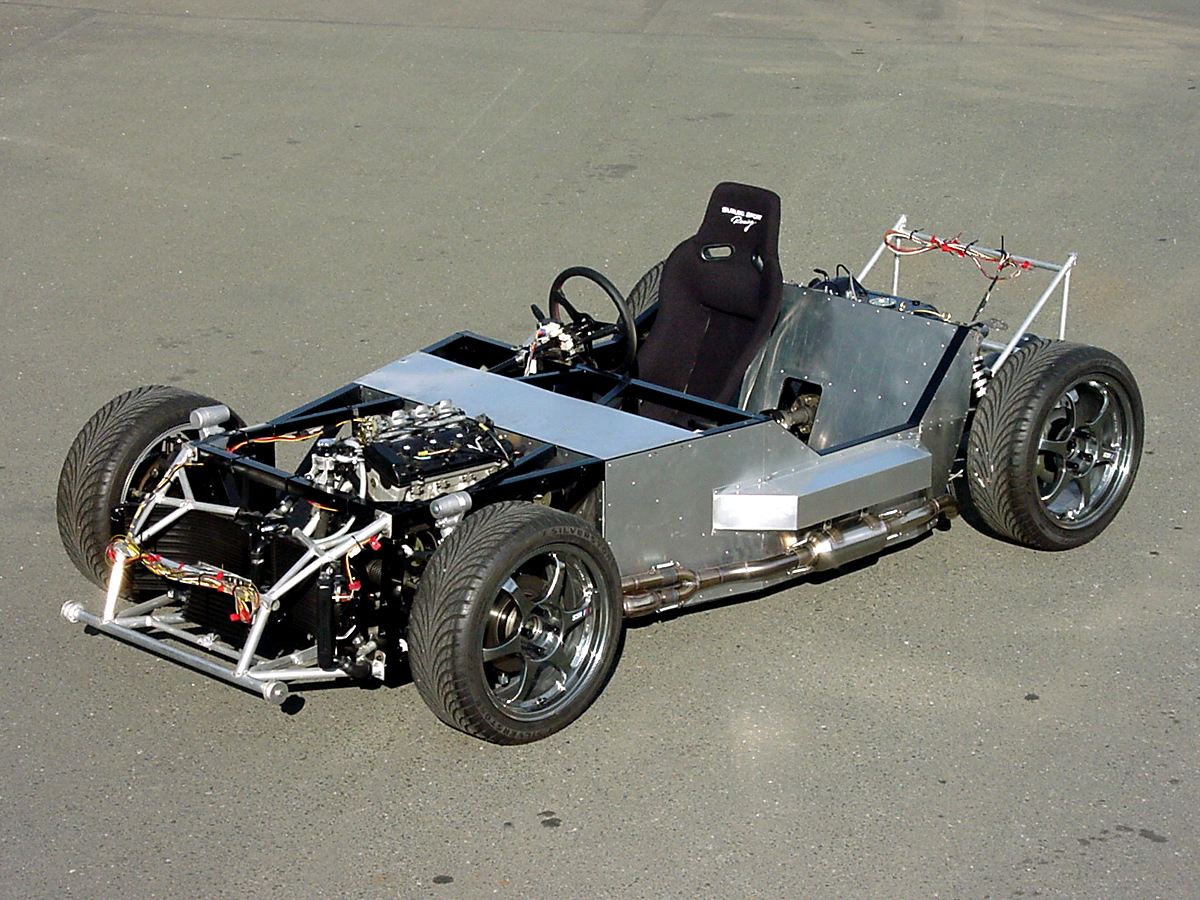

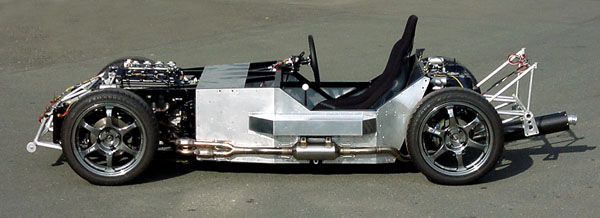

| Chassis |
Steel space frame + aluminum
panels |
| Layout |
Front mid-ship rear wheel drive |
| Body |
Carbon composite (CFRP) |
| Suspension |
4 wheel double wishbone |
| Front brake |
Ventilated disc |
| Rear brake |
Disc |
| Steering |
Rack and pinion (Non power assist) |
| Tire |
215/45ZR17 (SILVERSTONE FTZ) |
| Wheel |
17-7.5J(+42) forged alloy wheel |
| Fuel tank |
40Ｌ40liters |
| Cd（Drag coefficient）* |
0.29 |
| Cl（Dynamic lift）* |
F:-0.15 R:-0.08 total: -0.23 |

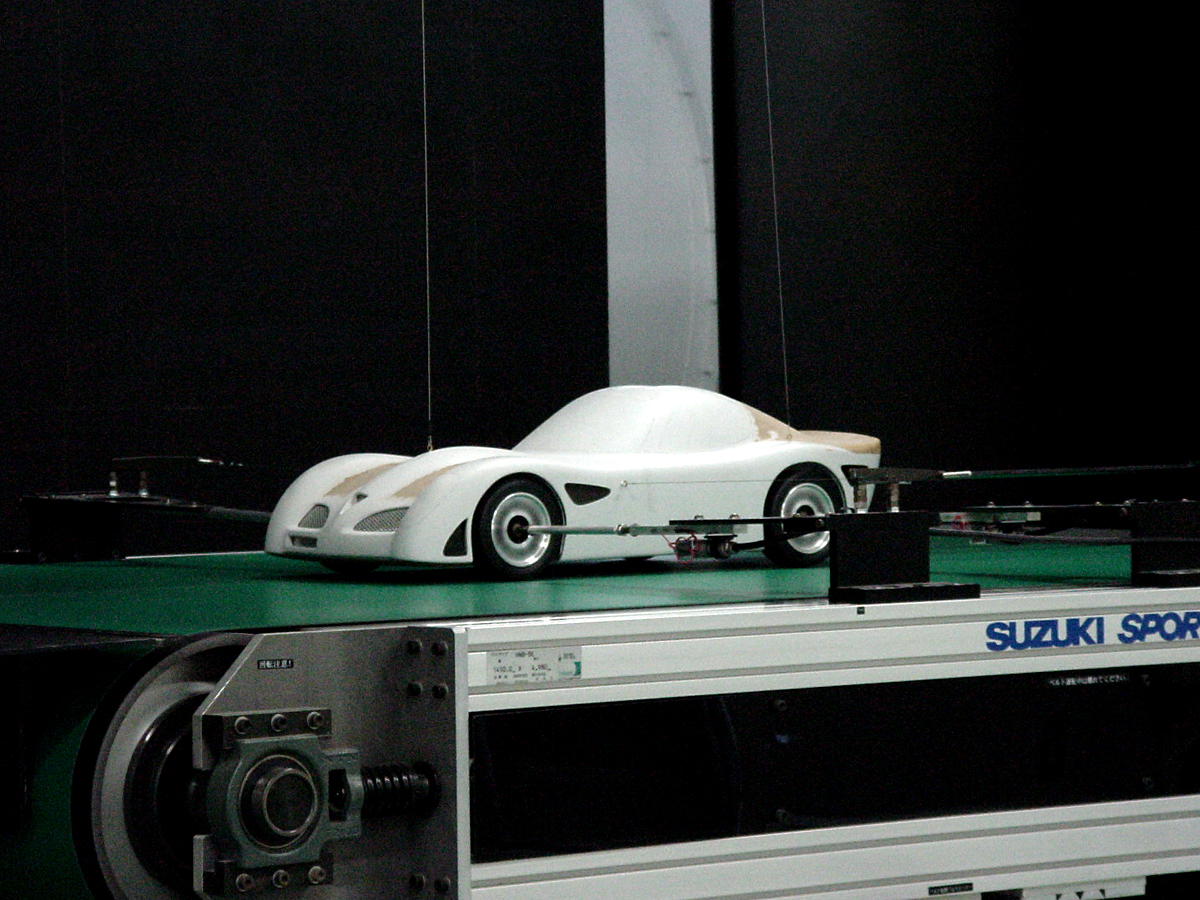

| *Test data by sclae model on
moving belt type wind tunnel machine. |
|
